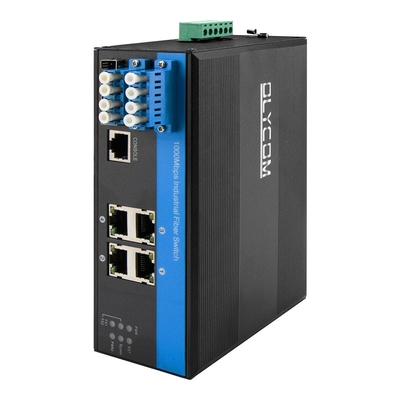

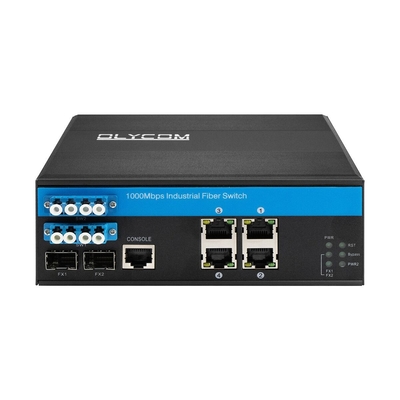

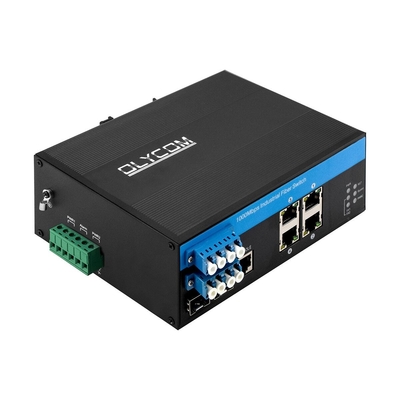

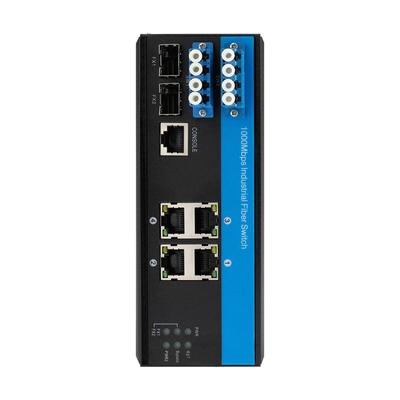

L2 Managed Industrial Switch with 2*2B Bypass Function
SM LC Connector for Protecting Optical Line
Key Features of Managed Optical Bypass switch
IM-FBS240GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features
- Wide voltage dual power input
- Web GUI management
- Din rail installation
- FCC and CE certification
And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as
- Metropolitan area network (MAN)
- Dynamic configuration of add/drop multiplexing
- System monitoring
- Laboratory research and development
Meantime, the fiber pass switch characterizes
- Low Insertion Loss
- Wide Wavelength Range
- Low Channel Crosstalk
Specification of Industrial Full Gigabit Switch
|
Product Name
|
10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+4TP)
|
|
Model No.
|
IM-FBS240GW
|
|
Port
|
2 x 2.5G SFP port
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
|
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table
|
8K
|
|
Switching features
|
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
|
LEDs
|
Power, network, fiber, bypass
|
|

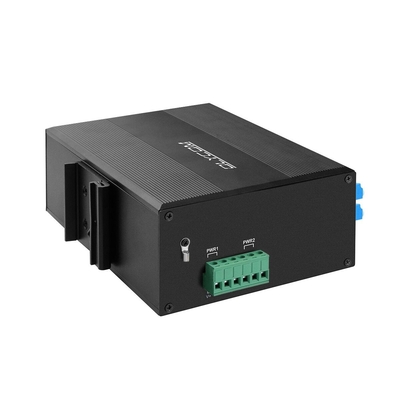

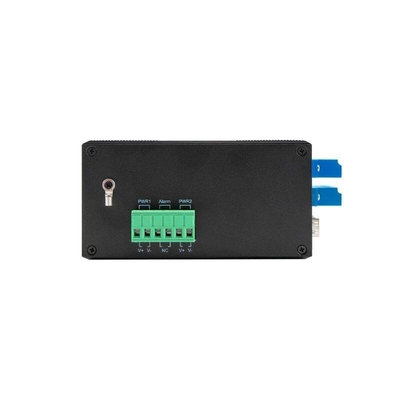

Power supply
|
Input voltage: DC 12-52V; No-load power: 5W;
Reverse connection: support
|
|
Environment
|
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
|
|
Industry Standards
|
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
|
|
Safety
|
CE Mark ,commercial ; CE/LVD EN60950
|
|
Mechanical information
|
Shell:Corrugated metal shell; Safety class:IP40;
Dimension:155 x 113x 60mm;
|
|
Warranty
|
3 years
|
|
Fiber Bypass
|
|
Category
|
Unit
|
Specification
|
|
Wavelength range
|
nm
|
850±40/1300±40
|
1260~1650
|
|
Test wavelength
|
nm
|
850/1300
|
1310/1550
|
|
Insert loss
|
dB
|
Typ:0.6 Max:1.0
|
Typ:0.6 Max:1.0
|
|
Return loss
|
dB
|
MM≥30 SM≥50
|
|
Channel crosstalk
|
dB
|
MM≥35 SM≥55
|
|
Polarization loss
|
dB
|
≤0.05
|
|
Wavelength loss
|
dB
|
≤0.05
|
|
Temperature loss
|
dB
|
≤0.05
|
|
Repeat-ability
|
dB
|
≤0.05
|
|
Operating voltage
|
v
|
3.3V-5V
|
|
Service life
|
times
|
≥100000000
|
|
Switching time
|
ms
|
≤10
|
|
Transmission optical power
|
mw
|
≤500
|
|
Operating temperature
|
ºc
|
-20~+70
|
|
Storage temperature
|
ºc
|
-40~+85
|
Application
Production Steps
Welding: Weld the necessary components
Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
Assembling: Builds up components of a product, like panels, screws, PCB boards.
Testing: To make sure the product is basically working fine after assembling
Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product lable.
When all above is done, the product will go to market.
FAQ:
What is an optical bypass switch?
A: it is also named a bypass TAP used for automatically switching faulty nodes when power outages or failures take place, this secures the complete optical transmission.
Where it is used?
A: It is mainly used to prevent network outages, protect the network or control the networking system in the optical telecommunication.
It can be used in ring or linear fiber network architectures such as railway communication systems, factory automation, and power substations.
What are the ordering options?
A: There is SC connector singlemode(4 port), LC singlemode(4 port and 8 port) and LC multimode(4 port and 8 port)for your choice as below photos.
Can your optical bypass units work with different switches?
A: Yes, this device is about the optical transmission level and not involving any network protocols.
It can work with any switches of different optical rates(100M/1G/2.5G/10G/25G/40G/100G).
If possible to support wall mounting?

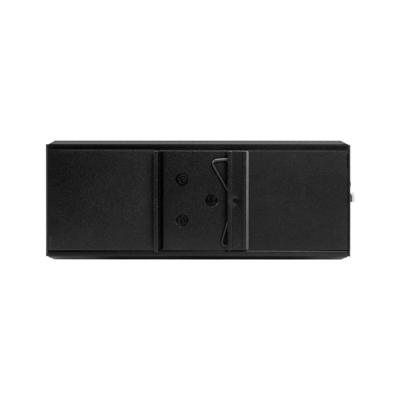

A: Yes, the standard installation is DIN rail. We also have a special rear panel with mounting holes for wall mounting.
There will be a pair of mounting hangers in the packing list.
