Positioning in an Industrial Network
IM-FP244FE is designed as a compact PoE access node with fiber-level resilience.
It sits at the edge of an industrial network, close to field devices, while maintaining reliable uplink paths to the backbone through dual fiber connections.
The switch is not intended to manage traffic policies or topology logic.
Its role is purely physical and electrical:
Aggregate field devices
Supply power over Ethernet
Push data upstream through redundant fiber paths
This makes it a building block for networks where availability matters more than configurability.
Why Dual Fiber Matters Here
Unlike single-fiber industrial switches, IM-FP244FE provides two independent Fast Ethernet SFP ports.
These ports are commonly used in three ways:
Primary + Backup Fiber Links
One fiber acts as the main uplink, the other as a standby path.
Dual-Direction Aggregation
One fiber connects upstream, the other downstream, forming a linear or segmented topology.
Physical Path Redundancy
Fiber routes follow different conduits or directions to reduce the impact of cable damage.
The switch itself does not perform ring protocols or failover logic.
Redundancy is achieved at the physical layer or by upstream equipment—keeping this device simple and predictable.
PoE at the Field Edge
Four copper ports provide IEEE 802.3af PoE output, each capable of powering a field device directly.
Typical powered equipment includes:
Fixed IP cameras
Compact wireless access points
PoE-enabled industrial sensors
Small monitoring terminals
Power and data are delivered through a single Ethernet cable, eliminating:
Local power adapters
Additional power wiring
Extra failure points in harsh environments
This is especially valuable in outdoor cabinets, roadside enclosures, and distributed industrial sites.
Traffic Behavior & Data Integrity
IM-FP244FE forwards traffic using a store-and-forward mechanism, prioritizing stability over latency optimization.
Frames are fully received and verified before transmission, reducing error propagation across the network.
Flow control mechanisms automatically regulate traffic when congestion occurs, preventing packet loss during temporary bursts from cameras or sensors.
Internal buffering allows the switch to handle simultaneous PoE device traffic without instability, even when fiber bandwidth is constrained.
Built for Electrical and Environmental Stress
The hardware platform is designed for environments where electrical noise and temperature extremes are normal, not exceptional.
Key design characteristics include:
IP40 metal enclosure for dust resistance
Industrial-grade EMI/EMS immunity
Stable operation from –40°C to +75°C
High humidity tolerance without condensation
The switch remains reliable near motors, substations, rail systems, and heavy industrial equipment.

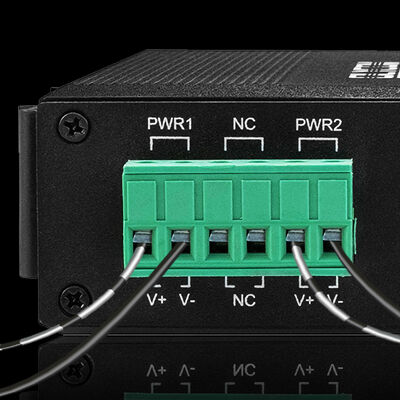

Power Input Philosophy
A wide DC input range allows the switch to operate from:
Industrial DC buses
Battery-backed power systems
Solar or remote power sources
Reverse polarity protection reduces wiring errors during installation.
Low idle power consumption supports fanless design and long service life.
Typical Deployment Scenarios
1. Redundant PoE Camera Nodes
Used in industrial parks, tunnels, or plant perimeters where camera uptime is critical and fiber paths must be protected.
2. Distributed Sensor Clusters
Aggregates multiple PoE sensors in process areas and forwards data upstream through redundant fiber links.
3. Roadside & Rail Cabinets
Supplies power and connectivity to monitoring devices and controllers while maintaining dual fiber paths to the control center.
4. Energy & Utility Monitoring Points
Installed in substations, pumping stations, or water treatment facilities where physical access is limited and downtime is costly.
5. Harsh Industrial Sites
Suitable for mining, metallurgy, and petrochemical environments where dust, vibration, and electrical interference are unavoidable.
Why This Model Exists
IM-FP244FE is not a simplified managed switch.
It is a purpose-built PoE edge device with physical redundancy.
It trades configuration flexibility for:
Electrical simplicity
Predictable behavior
Long-term stability
For industrial systems that need PoE at the edge and fiber resilience upstream—without software complexity,
IM-FP244FE fits naturally into the design.
